Prodockit authoring features¶

Document appearance and structure covers the appearance and structure of the website and PDF. This page covers the prodockit features an author uses while writing. They are already enabled in the template and work in both outputs unless a section says otherwise.

Use this page to get a feature working. Follow its link to the prodockit reference manual when you need every option or the generated HTML details.

Changing heading numbering¶

numbering is enabled for the website and PDF by default. To turn it off, set this in zensical.toml:

[project.extra]
heading_numbering = false

Set it back to true to restore them. The numbers written in the nav titles are separate and must be kept in sequence manually:

{"6. Case study" = "casestudy.md"}

Leave a heading unnumbered or out of PDF navigation¶

Add classes to a heading when it should not behave like an ordinary numbered section:

# Cover page {: .unnumbered .unlisted .unbookmarked }

• .unnumbered removes its number without consuming the next number.
• .unlisted leaves it out of the PDF's Table of Contents page.
• .unbookmarked leaves it out of the PDF reader's bookmark outline.

Use only the classes you need. The heading keeps its id and remains a valid link target. See the prodockit.headings reference for numbering modes and advanced configuration.

Section cross-references¶

Cross-references need an important target with a short, stable id so a later wording change does not break its links:

## Deployment process {: #deployment }

Link to it from any page with \ref{id}:

Follow the process in \ref{deployment}.

The displayed number and heading text update automatically when content moves. Targets may appear on a later page: a forward cross-page reference resolves on the first complete build. The same syntax links to a figure or table when its caption has an id.

If the target is missing or mistyped, the link displays ??. Search for that marker in both the website and PDF before publishing.

Include the target's PDF page number¶

Use \autoref{id} where someone reading a printed copy may need to turn to the target:

The numbering rules are explained in \autoref{changing-heading-numbering}.

On the website it looks like \ref{id}. In the PDF it also says “on page N”. Use \ref for ordinary links and \autoref when the page number helps the printed reader. See the prodockit.refs reference for caption references and troubleshooting.

Write a numbered procedure¶

Use prodockit.steps for Numbered procedures when a reader must carry out actions in order. Use an ordinary numbered list when the items are facts.

/// steps

//// step | Preview the website

``` bash
zensical serve
```

Leave the preview running while you edit.

////

//// step | Stop the preview

Return to the terminal and press `Ctrl+C`.

////

///

The outer block uses three slashes. Each nested step uses four and closes with the same number. A step can contain paragraphs, commands, admonitions, or tabs.

Continue after a break by setting the next number:

/// steps
    start: 3

//// step | Build the finished website

Run `zensical build --clean --strict`.

////

///

Options go immediately below /// steps, indented by four spaces, followed by a blank line. See the prodockit.steps reference for ids and more complex content.

Show a directory structure¶

Use prodockit.tree to create Directory trees instead of drawing a directory with box characters:

/// tree
    indent: 4

docs/ - source files for the document
    index.md - home page
    images/ - images used by the document
        architecture.png - system architecture diagram
zensical.toml - website configuration
///

A trailing / marks a directory. An entry without one is a file. Add a description after -, including the spaces on both sides of the hyphen. indent: 4 makes each four-space level one level of the tree. See the prodockit.tree reference for icon choices and error explanations.

References and bibliography¶

The template supports References and a generated Bibliography. Pick the approach that matches how your sources are maintained; both can coexist, but most documents need only one.

Maintain a hand-written reference list¶

Add each source to docs/references.md and give it a unique id, display text, and .reference class:

Skoulikari, A. (2023) *Learning Git: A Hands-On and Visual Guide to the Basics
of Git*. Sebastopol, CA: O'Reilly Media.
{: #skou2023 .reference data-cite-text="Skoulikari, 2023" }

Leave a blank line around every entry. Cite it from any page with:

Git records changes to a project.\citeref{skou2023}

Use a comma inside one marker to cite several sources: \citeref{skou2023,chacon2014}. A missing id displays ?.

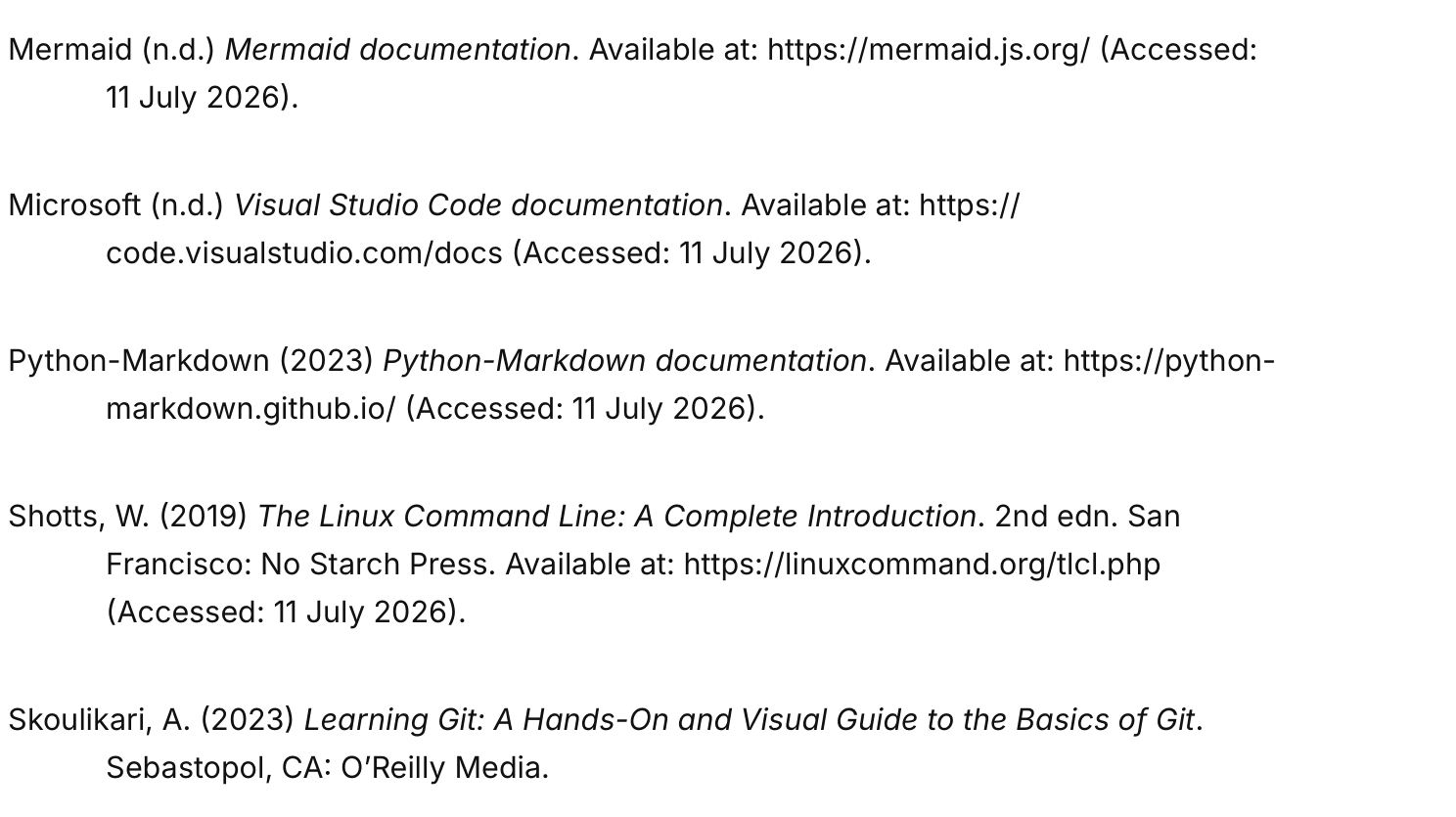

The template's default reference_style = "european" keeps entries close together. Change it to "global" in [project.extra] for larger spacing and a hanging indent. See the prodockit.citations reference for the layout settings and generated links.

An alternative: prodockit.bibliography¶

Put BibTeX or BibLaTeX entries in references.bib. Cite an entry by its key:

Git is a distributed version control system \cite{chacon2014}.

Place the generated list where it belongs:

# References

\bibliography

The template points to harvard-cite-them-right.csl; change csl_style under [project.markdown_extensions."prodockit.bibliography"] when another style is required. pdk pdf prepares its own Pandoc runtime on first PDF use; a website-only build does not need that PDF preparation. See the prodockit.bibliography reference for .bib files, CSL styles, locators, and multiple bibliographies.

Acronyms and abbreviations¶

Define Acronyms once in docs/acronyms.md:

**CSS** - Cascading Style Sheets
{: #css .acronym data-term="CSS" }

Insert it from any page with \gls{id}:

The website uses \gls{css} for its appearance.

Keep ids short, lowercase, and unique. A missing id displays ?.

Glossary¶

Glossary terms use the same extension and syntax in docs/glossary.md:

**Markdown** - A lightweight markup language for formatting plain text.
{: #markdown-def .glossary data-term="Markdown" }

Insert the term with \gls{markdown-def}. Acronyms and glossary terms share one id namespace, so do not reuse an id. Use an ordinary Markdown link when the sentence needs different link text, such as “see the glossary”.

See the prodockit.glossary reference for plural forms, first-use expansion, styling, and cross-links.

Appendixes¶

Mark Appendixes in the page's front matter:

---
icon: lucide/book-open
is_appendix: true
exclude_from_word_count: true
---

Appendixes receive letters in nav order without consuming a chapter number. Their visible nav labels are still written manually:

{"Appendix A. Acronyms" = "acronyms.md"}

The template already configures its acronym, glossary, and reference pages as appendixes.

Back-of-book index¶

Create a Back-of-book index by marking a term where it is discussed:

A \index{merge conflict} occurs when Git cannot combine two changes.

Use Parent!Child to group entries and backticks for commands:

Load the \index{Git!ssh key} before running \index{`git push`}.

The text remains normal on the website. The PDF collects every marker into an alphabetical index because include = true is set for prodockit.index in zensical.toml. See the prodockit.index reference for ranges, hidden markers, sorting, and configuration.

Captions¶

Captions identify every figure and table that a reader may need to discuss or reference. Put the caption block immediately after its image or table.

Caption a figure¶

Give the caption a stable id when the figure will be referenced elsewhere:

![Architecture overview](images/architecture.png)
/// figure-caption
    attrs: {id: figure-architecture}

Architecture overview
///

Refer to it with \ref{figure-architecture}. Add the .screenshot class to the image when it is a screenshot rather than a diagram, logo, or photograph.

Caption a table¶

Add | < so a table caption is displayed above its table even though the caption block remains after it in the Markdown:

| Option | Purpose |
|---|---|
| `--clean` | Remove the previous output before building |
/// table-caption | <
    attrs: {id: table-build-options}

Build options
///

Give the caption an id when it will be referenced with \ref{table-build-options}. Use plain /// caption only for an unnumbered decorative image. The PyMdown Blocks caption reference explains fixed numbers, extra classes, and positioning.

Set table widths and alignment¶

Adjust width and alignment when the automatic widths do not read well:

| Name {: width="30%" } | Description |
|:---|---|
| Headings | Heading ids and section numbers |
| References | Cross-references resolved by number |

The colon in :--- left-aligns that column. Use :---: to centre it or ---: to right-align it. Width and alignment work together.

Make a dense table compact¶

Add .compact to any header cell to reduce the padding and minimum widths for the whole table:

| Threat {: .compact } | Likelihood | Impact | Risk |
|---|---|---|---|
| Credential theft | H | H | H |

Merge cells and use more than one header row¶

Use colspan and rowspan on the cells that survive a merge. Keep empty placeholder cells so every Markdown row still has the same number of columns:

| Target {: rowspan=2 } | Measured {: colspan=2 } | | Note {: rowspan=2 } |
|---|---|---|---|
| | Before {: .header } | After | |
| Widget | 1 | 2 | ok |

The .header class promotes the second row into the repeating table header. Put it on a cell containing text.

Shade a cell¶

Header cells have a subtle 5% shade by default. Remove it from one cell with shade="off", or set a percentage on a header or body cell:

| Unshaded {: shade="off" } | Grouped heading {: colspan=2 shade="8%" } | |
|---|---|---|
| Normal | Highlighted {: shade="5%" } | Normal |

Shading belongs to the surviving cell and therefore works with merged cells.

Fit an unusually wide table¶

First try shorter headings, .compact, and sensible column widths. If a heading still makes a narrow data column too wide, rotate it with rotate=270 and give it both a width and a height:

| Item | Availability {: rotate=270 width="2em" height="90pt" } |
|---|---|
| Investment data | H |

For a table or diagram that genuinely needs a landscape PDF page, wrap it and its caption in:

<div class="landscape-page" markdown="1">

| ID | Description |
|---|---|
| 1 | A wide item |
/// table-caption | <
    attrs: {id: table-landscape-example}

A wide reference table
///

</div>

The website remains in its normal layout. The PDF places the complete block on a landscape page. See the prodockit.tables reference for validation rules and the remaining cell options.

Finalising your document¶

Finalise a document before publishing it:

1. Delete the author's warning admonition at the start of originality.md.
2. Search the website and PDF for unresolved ?? references and ? citations or glossary terms.
3. Check every figure and table has the intended caption and number.
4. Check appendix labels and manually written numbers in nav remain in order.
5. Build both outputs and complete the review in Build and publish.

Where to go next¶

Continue to Build and publish to change how the website and PDF are built and published. Use the prodockit reference manual when a feature needs an option not covered by this author workflow.
